Parameter

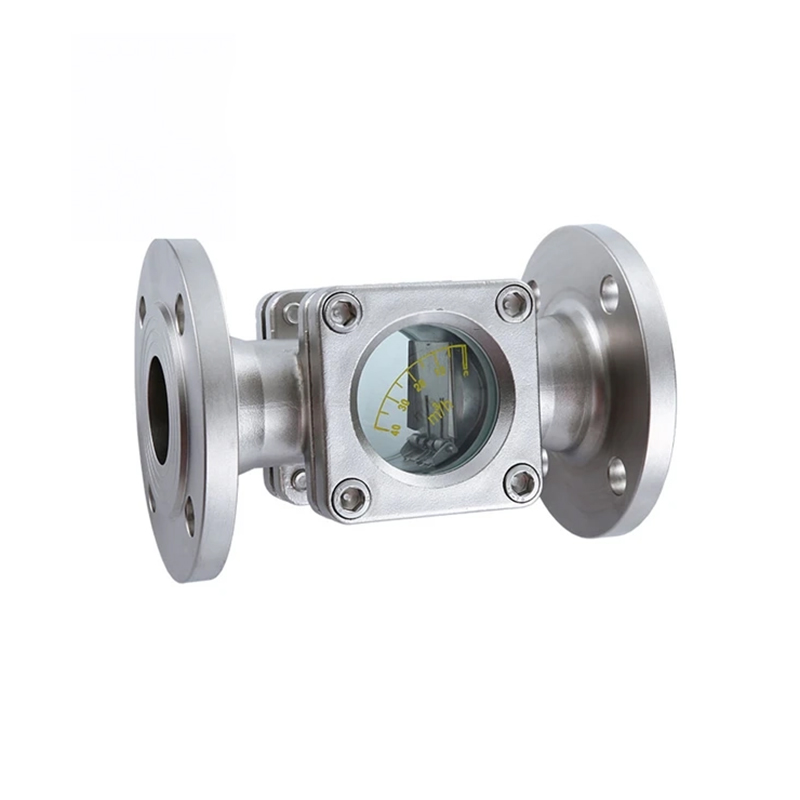

Model number: FAGP
Body material: carbon steel (WCB); 304; 316; 316L
Caliber: DN6-DN400 (1/8-16 inch)
Mpa pressure rating: 0.6/1.0/1.6/2.5/4.0/5.0
Medium: water, oil, gas and chemical acid, salty liquid or gas
Glass temperature resistance: tempered borosilicate glass: ≤200℃, quartz glass: 1000℃ allows rapid change of temperature ≤60℃
Glass pressure resistance: tempered borosilicate glass sheet ≤2.5MPa quartz glass sheet ≤10.0MPa
Pendulum plate can be made of material: 304; 316; 316L
Sealing gasket: Butadiene rubber gasket/PTFE gasket/metal gasket/graphite gasket
Flange standard: HG/ GB/ HGJ/ JB/ ANSI/ JIS/ DIN/ BS/ NF
